From the manufacturer

Good sound from sound technology

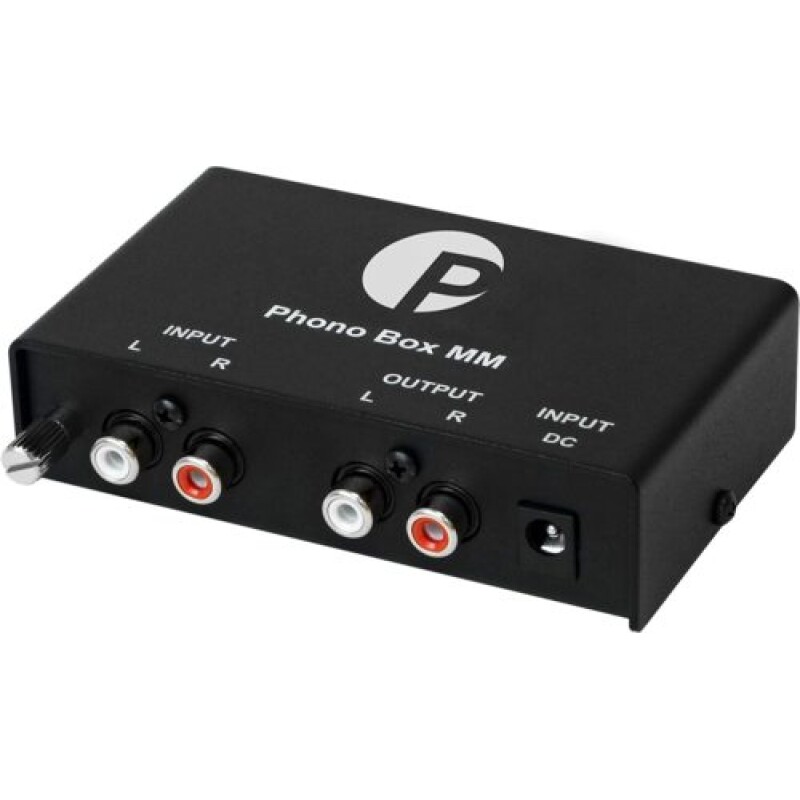

Today, many amplifiers do not have a specific phono cartridge input. Phono Box MM is an ideal phono preamplifier for these hifi systems. Phono Box MM accepts MM and high-output MC cartridges and offers an audiophile music experience at an entry-level budget. Advanced circuitry keeps noise and distortion at a surprisingly low level. The metal case shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box MM can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box MM can be connected easily to a line-input (AUX etc) of your amplifier.

Technical Specifications

Input impedance 47 kOhm / 120 pF
Gain 40 dB
Output voltage 500 mV / 1 kHz at 5 mV /1 kHz
Noise floor 88 dB (A weighted)
THD <0,04%
Input 1 pair RCA/phono sockets
Line-level output 1 pair RCA/phono sockets
Outboard power supply 18 V / 500 mA DC, suitable for your country’s mains supply
Power consumption 20 mA DC
Dimensions W x H x D 107 x 30 x 75 mm
Weight 280g without power supply
